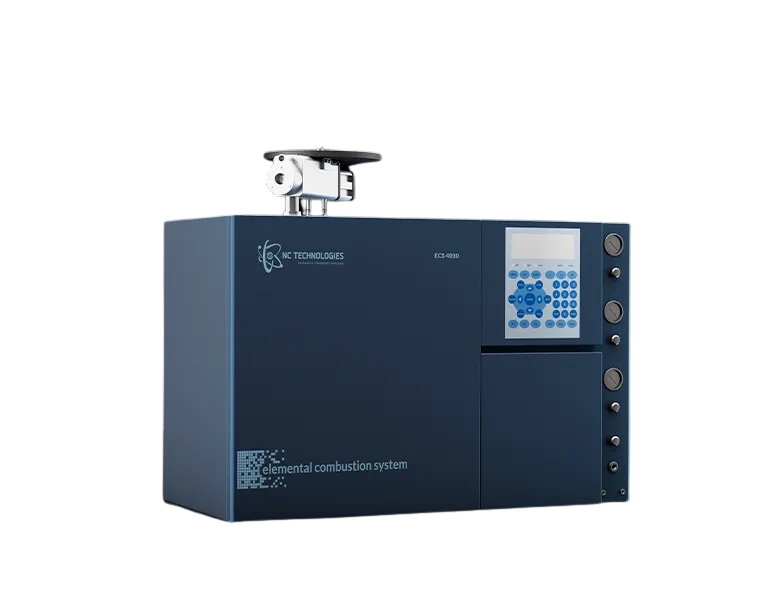

NC TECHNOLOGIES ECS 4010
CHNS-O ELEMENTAL COMBUSTION SYSTEM – ELEMENTAL ANALYZER
The fully automatic ECS 4010 elemental analyzer, ideal for the analysis of homogeneous samples.
It is an instrument for organic elemental analysis based on high-temperature catalytic combustion (Dumas method) for the simultaneous determination of the elements CHNS and optionally O.
The ECS 4010 is the automatic model that represents an evolution of the elemental analysis techniques based on “flash combustion” and chromatographic separation. The combustion gases CO2, H2O, SO2 and N2 are separated in a GC column maintained at a constant temperature, selectable by the user between 30° and 110 °C. The detection and determination of the concentrations of the various elements is carried out by a thermal conductivity detector (TCD).
FEATURES
- Manual gas regulation
- High sensitivity, accuracy and precision
- Flexibility and versatility of applications
- Detector does not require reference gas
- Powerful software for viewing results from a computer
- Three types of samplers available: electronic / pneumatic / manual.
- Easy connection to Mass Spectrometers and other detectors for stable isotopes analysis
- Low operation and management costs
- Low initial instrument investment
- Standby mode for gas, energy and time savings
